Stainless Steel Atm Pin Keypad , Encrypted Wired Keyboard With Embedded Security Chip

shenzhen guangzhi technology co., ltd.
Contact Now

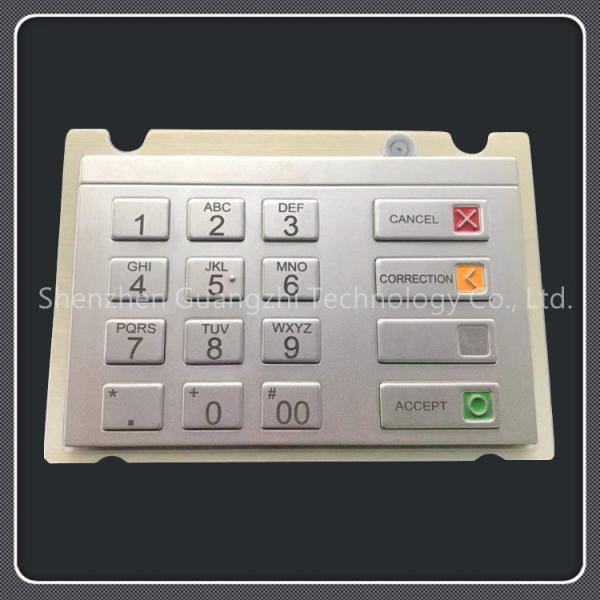

Stainless Steel Atm Pin Keypad , Encrypted Wired Keyboard With Embedded Security Chip

  • 1
  • 2

Brand Name : guangzhi

Model Number : GZ-B026016G-P7

Certification : CE、FCC、RoHS、PCI、CB、 PCI 4.x 、PTS2.x、 GUOMI

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T,Paypal

Supply Ability : 100000pcs

Delivery Time : 10-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : ATM,VDM,CTM,CDM

Connection : USB,PS2 and R232

Material : Stainless steel 304

Certificate : UnionPay certificatio,CE, FCC , RoHs, IP67

size : 160*102.5mm

key : 16

Contact Now

Stainless steel ATM encryption keyboard, embedded security chip USB interface

1.Introduction

P7 is designed and manufactured in accordance with the top-level industrial security chip standards, and fully compliance with the highest level of domestic and international financial security certification requirements. With the intrusion detection mechanism-drilling-resistant (intrusion), anti-disassemble, replacement -proof etc., it can make the user's password much safer. This product can be widely used in finance, telecommunications, national defense and other fields; it can also prevent illegal attacker tampering user's information.

2.Physical Feature

2.1 Size

  • Dimensions:

    • L×W×H: 176 mm×121.5mm×31mm

P7 Drawing

Stainless Steel Atm Pin Keypad , Encrypted Wired Keyboard With Embedded Security Chip

2.2 Processor and memory

Processor:

ARM® Cortex® M3 Processor Core

60MHz Core Operating Frequency Through PLL


Memory:

Code Space: 512 Kbytes

Data Space: 96 Kbytes

2.3 Connector

USB connector

P7 adopt standard “B” receptacle for USB interface.

P7 is a Bus-powered Full-Speed USB2.0-compliant device. Maximum current consumption requirement of the EPP is 500mA using this interface.

USB Connector Termination Assignment as below:

Contact No

Signa Name

1

VBUS

2

D-

3

D+

4

GND

Shell

Shield

FDK connector

P7 provide a FDK connector to support an 8-key function keypad. The connector is from ZEQAN-TECH (Product code: A2023-2X05A).


Stainless Steel Atm Pin Keypad , Encrypted Wired Keyboard With Embedded Security Chip

PIN No

Signal Name

PIN No

Signal Name

1

F1

6

F2

2

F3

7

F4

3

F5

8

F6

4

F7

9

F8

5

GND

10

GND

3.Product Feature

3.1 Environmental characteristics

Power supply:4.0V~5.50V,500mA (USB bus power)

Operating temperature range:-25°C ~ +65°C

Storage temperature range:-30°C ~ +70°C

Transport temperature range: -30°C ~ +70°C

Operating Relative humidity: 5% ~ 95% r.h. non-condensing

Storage Relative humidity: 5% ~ 98% r.h. non-condensing

Transport Relative humidity: 5% ~ 98% r.h. non-condensing

Max Operating Altitude: 3000 meters

3.2 Test and Certifications

Water spray/dust Protection: IP65

RoHS Compliance

MTBF: Min.100,000hours with 100,000 transactions per year

EMI/EMP EN55032/A for Emissions

EN55024 for Immunity

IEC61000-4-2 Level 4 for ESD (Contact: ±8KV; Air: ±15KV)

IEC/EN 61000-4-4 Retail: 3 for Burst (2kV on power lines, 1kV on data lines)

Certifications:

CE

CB

PCI 4.X

PTS2.X

GUOMI

3.3 Keystroke performance

Remove Switch force: 2.5N±0.4

Numerical Keys force: 3.5N±0.7(Center); 2.5N±0.5(Edge)

Function Keys force: 7.0N±1.0(Center); 3.0N±0.5(Long Edge)

Life of Keys: 2,000,000 cycles minimum@5N

3.4 Battery performance

Battery life@25ºC(without load):>10 years

Battery life@25ºC(with load):>5 years

4.Software Feature

4.1 Pin block format

IBM 3624

ANSI

ISO0

ISO1

ISO3

4.2 Firmware update

Support authenticated firmware updated and remain device configuration and key value.

4.3 Algorithm

DES/TDES encrypt/decryption(ECB/CBC)

SM2 key pair generated

SM2 encrypt/decryption

SM2 sign/verify

SM3 hash

SM4 encrypt/decryption(ECB/CBC)

DES/TDES/SM4 MAC calculation

4.4 Authorized removal detection

4.5 Random data generation

4.6 Keypad layout modification

4.7 Plaintext entry/PIN entry

4.8 Password entry/Terminal master key entry

4.9 Support XFS 3.3(Extensions for Financial Services)

4.10 Support device status diagnosis using indicator light

4.11 Software environment

Running in WINXP and WIN7 all edition, and recognized as a HID(Human Interface Device) device.
