Metal Button Usb Numeric Keypad , PS2 Interface Portable Numeric Keypad

Product Categories

Metal Numeric Keypad [169]
Industrial Numeric Keypad [68]
Backlit Numeric Keypad [56]
Embedded Numeric Keypad [28]
Industrial Keyboard With Trackball [45]
Industrial Keyboard With Touchpad [38]
Trackball Pointing Device [49]
Waterproof Keypad [18]
Stainless Steel Keyboard [57]
Pin Code Keypad [37]
Function Keypad [28]
Silicone Rubber Keypad [37]
ATM Pin Keypad [10]
RFID Card Reader [9]
Custom Keyboard Pad [16]
Usb Numeric Keypad With Display [10]
Wireless Mouse Chip [6]

shenzhen guangzhi technology co., ltd.

Contact Now

Metal Button Usb Numeric Keypad , PS2 Interface Portable Numeric Keypad

Name: Metal Button Usb Numeric Keypad PS2 Interface Portable Numeric Keypad
Brand: szguangzhi
Price: 1 USD

Brand Name : szguangzhi

Model Number : GZ-B009023

Certification : CE、FCC、RoHS、IP67

Place of Origin : SHENZHEN CHINA

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T

Supply Ability : 1000000pcs

Delivery Time : 1-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller

Product name : Keypad, Stainless Steel ATM Keyboard, Mini usb wired 19 key digital numeric keypad, ATM PINPAD, custom numeric keypad

Warranty : 1YEAR

Keypad button material : Stainless steel

Size : 100*91.5mm

Weight : 1KG

Contact Now

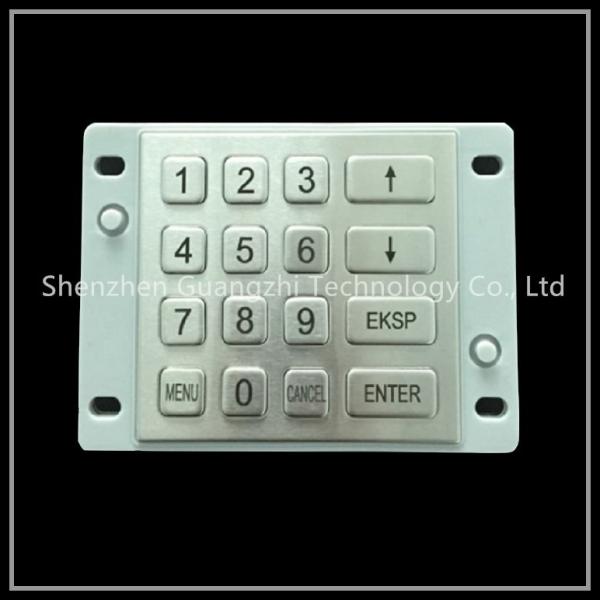

Waterproof industrial metal button USB interface or PS2 interface, portable numeric keypad

Product name:Metal Numeric Keypad

Model: GZ-B009023

keys	16 keys
contact	metal dome
Actuation Force	0.6 N+/-0.1N (pressure point)
Frame/keys materials	Stainless steel
Dimensions	100*91.5mm
G.W.	200 g approx
Key Size	14.0mm 14.0mm 1428mm
life span	more than 2,000,000 cycles

Mechanical Specifications:

1. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.

2. Design of the key: Square Key with character of laser engraving and corrosion.

3. Key Size: 13.8mm13.8mm,13.827.8mm；

4. Key`s travel :0.5mm

5. Lifetime of the key: Operating more than 2Million per key.

6. Strength of the key: 1.2N+/-0.1N (Contact with strength)

7. Front Panel: import printing-brush SUS304 stainless steel with 1.5 thickness.

8) Electric parameter:

1. Operating current: Direct current+5V/-5%

2 working current:20mA

3 Expected life-time:>5yer

4. Button switch technology: Rubber key

5. Interface Technology:USB,PS2,R232,8PIN

6. Operating System:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx

7. Waterproof grade:IP65

9) Environmental adaptation:

1. Operating Temperature:-20℃to+60℃

2. Storage Temperature:-30℃to+70℃

3. Relative Humidity: 30-90% without Condensation dew

4. Atmospheric Pressure:50-100Kpa

5. IP Level : IP65( static state ) / IP (Dynamic state
